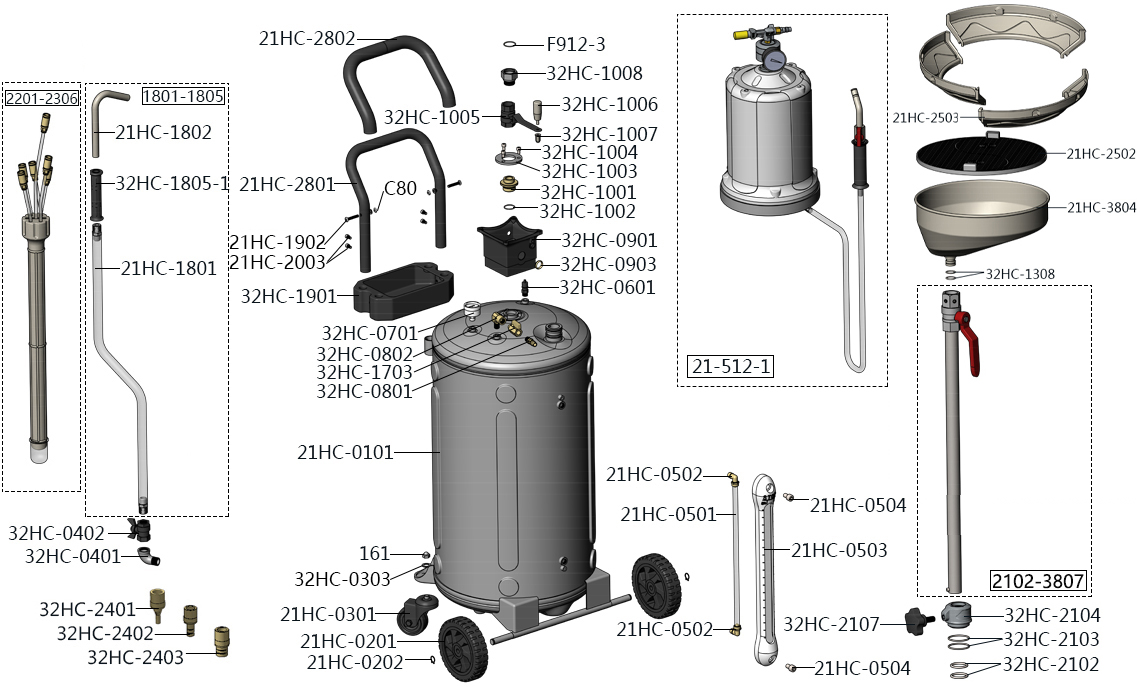

图片 爆炸图编码 名称 原U8编码 SKU 价格 数量
21HC-2502 抽油机塑料过滤网φ400 GZBLS-HC-0030-400010-0 JZ12001500001
- +
32HC-1308 O型密封圈 GZBLS-S-000-018250-1N FJ29002000075
- +
32HC-2103 O型密封圈 GZBLS-S-000-042355-1N FJ29002000203
- +
32HC-2102 O型密封圈 GZBLS-S-000-038350-1W FJ29002000164
- +
21HC-3804 20/21/22系列新款托盘16Lφ400×H176×0.8 GZBLS-CW-310-000003-0 JZ30500600029
- +
21HC-2801 2097扶手（喷涂） GZBLS-HCX-2097-000005-0 JZ20400700366
- +
21HC-1802 2097排油弯钩（彩锌） GZBLS-HCX-2097-000009-0 JZ20400700368
- +
21HC-0101 2197罐体（喷涂） GZBLS-HCX-2197-000001-0 JZ20400700264
- +
1801-1805 21系列排油管2米 GZBLS-CW-080-219700-3 JZ30500600138
- +
32HC-1003 3297量杯固定圆压板（镀彩锌） GZBLS-HCX-3297-000011-0 JZ20400700133
- +
21HC-0301 3寸风火孔顶Ф75×Ф12×H100  配2.5寸支架 GZBLS-S-040-030040-3 FJ28007000001
- +
21HC-0201 6.5寸风火单轮φ160×35 GZBLS-S-040-065010-3 FJ28002000002
- +
32HC-0802 90度过渡弯通接头 GZBLS-S-020-020022-1 EQ08002000007
- +
32HC-1005 90度手柄球阀 GZBLS-S-030-060001-3Z EQ02010000001
- +
21HC-0202 E形轴用弹性挡圈 GZBLS-B-055-100001-0 FJ14001000001
- +
32HC-0903 O型护线圈 GZBLS-D-102-220000-1 CF03002000011
- +
F912-3 O型密封圈 GZBLS-S-000-025265-1N,S-000-0240 FJ29002000132
- +
32HC-1002 O型密封圈 GZBLS-S-000-031240-1W FJ29002000295
- +
21HC-0501 PU管 GZBLS-S-035-120080-1 CF01002000019
- +
32HC-0601 安全阀1KG  G1/4 GZBLS-S-030-020102-5 EQ02001000007
- +
32HC-1805-1 把手套 GZBLS-HC-0030-012016-0 FJ02001000006
- +
32HC-2402 宝马接头 GZBLS-HC-0040-122014-0 JZ20400700104
- +
32HC-2403 奔驰接头 GZBLS-HC-0040-158015-0 JZ20400700106
- +
32HC-2401 大众接头 GZBLS-HC-0040-100016-0 JZ20400700109
- +
32HC-0402 蝶阀G1/2内外牙 GZBLS-S-030-040012-1 EQ02010000007
- +
32HC-1901 工具盒245×140×H60 GZBLS-HC-0030-000017-0 JZ12000600009
- +
32HC-0401 过渡水管弯头（镀彩锌） GZBLS-HCX-0020-040412-1 JZ20400700110
- +
21HC-2802 海绵护套 GZBLS-HC-0030-420024-0 JZ12101000010
- +
21HC-0502 快拧弯头 GZBLS-S-015-021202-6 EQ11004000005
- +
32HC-1001 量杯球阀底部活接 GZBLS-HC-0040-006012-4 JZ11800800003
- +
32HC-1008 量杯球阀顶部活接（外六角） GZBLS-HC-0040-006012-5 JZ20400700114
- +
32HC-1007 六角盖形螺母 GZBLS-B-034-060002-0 FJ21009000008
- +
C80 六角螺母 GZBLS-B-004-060000-0,B-004-06000 FJ21011000023
- +
32HC-1703 迷你球阀G1/4双内牙 GZBLS-S-030-020011-2 EQ02010000014
- +
21HC-1902 内六角倒边螺钉 GZBLS-B-009-060302-0 FJ19010000020
- +
21HC-0504 内六角倒边螺钉 GZBLS-B-009-060202-0 FJ19010000018
- +
21HC-2003 内六角圆柱头螺栓全牙 GZBLS-B-011-060100-0 FJ22009000083
- +
32HC-1004 内六角圆柱头螺栓全牙 GZBLS-B-011-060160-0 FJ22009000091
- +
21HC-1801 排油钢丝软管21/22系列 GZBLS-HCZ-2197-120220-2 JZ30500600344
- +
32HC-0303 平垫圈 GZBLS-B-040-122401-1 FJ15006000017
- +
